SPIFE Touch
Advanced Electrophoresis Technology
The Nucleus of the Touch System
Smaller. Faster. Touch Screen. Versatile. Those are the design specs behind all the Touch Series analyzers. SPIFE Touch builds on the proven track record of the SPIFE agarose gel electrophoresis analyzer, but is 30% faster, uses lower stain and destain volumes and has a touch screen user interface.
Full Menu of Analytes
Includes proteins, IFEs, hemoglobins, direct cholesterol with Lp(a)-c, isoenzymes, lipoproteins, A1AT and oligoclonal banding. Demo Video.
Touch Screen Interface
New intuitive touch interface for test selection and customization of all parameters.

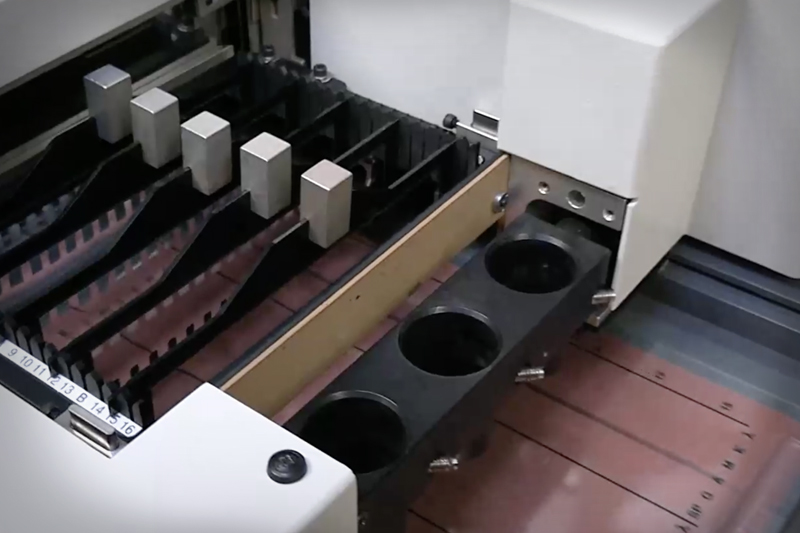

30% Faster Processing
Faster processing and organized workflow for greater efficiency and throughput.

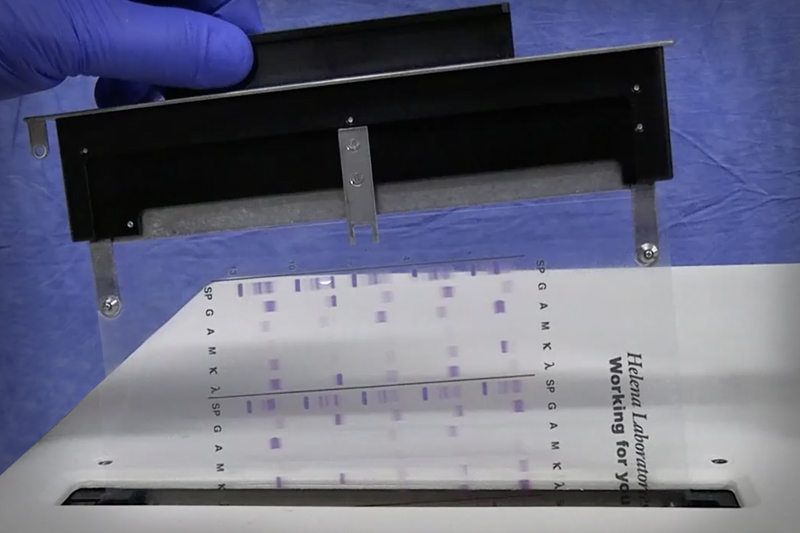

Auto Visualization
Automatic reagent application for enzymatic assays and auto staining for visible analytes.
SPIFE Touch Assays
SPIFE Touch can handle a full menu of assays meeting the needs of most laboratories, even those with the highest volumes and most complex patient populations. Gel sizes are available for smaller volumes as well.
SPIFE Touch Features
SPIFE Touch is the proven, workhorse solution for clinical gel electrophoresis needs.
Integrates with ESH Touch and QS Touch for positive sample tracking
Easy-to-use touch screen interface
New applicator blades provide fast, clean and accurate sampling
Peltier temperature control for sample integrity and crisp separations
Auto application of enzymatic reagents and full staining module for visible analytes
Full menu of analytes and gel sizes
Need Imaging and Quantitation?
The new QuickScan Touch Plus includes a more powerful Windows 10 CPU and a new SQL database format for enhanced data management.
Let's Get Technical
Want to know the details? Helena provides complete information on SPIFE Touch. Feel free to download a brochure or check out the latest warranty, service and technical specifications.
SPIFE Touch Product Numbers
Product No. / Item
1068 – SPIFE Touch (120 Vac, 50/60 Hz)
1069 – SPIFE Touch (230 Vac, 50/60 Hz)
1070 – Stain Guard for SPIFE Touch
Spife Sampling Accessories
3353 – SPIFE QuickGel Dispo Cup Tray, Row 6/12
3354 – SPIFE QuickGel Dispo Cup Tray, Row 8/B
3364 – SPIFE 20-80 Dispo Cup Tray
3366 – SPIFE 20-100 Dispo Cup Tray
3370 – SPIFE 20,40,60 Dispo Cup Tray
3369 – SPIFE Dispo Sample Cups – Shallow Well, 100/pkg
3360 – SPIFE Dispo Sample Cups – Deep Well, 100/pkg
3450 – SPIFE Applicator Blades, 30/pkg
3451 – SPIFE Modified Applicator Blades, 30/pkg
3387 – Applicator Blade Weights (for SPIFE, REP) (3/pkg)
Electrodes and Spreaders
1111 – SPIFE QuickGel Electrodes, 2/pkg
3709 – SPIFE Replacement Electrodes (2/pkg)
3388 – SPIFE Stainless Steel Electrodes, (3/pkg)
3706 – SPIFE Reagent Spreaders (2/pkg)
3702 – SPIFE IEF Tungsten Electrodes/Adapters (3 electrodes, 2 adapters)
Other Spife Items
1093 – SPIFE Replacement Pump
1113 – SPIFE Maintenance Swabs (5/pkg)
1114 – SPIFE Maintenance Swabs, small (10/pkg)
1115 – SPIFE Gel Block Remover
1346 – Barcode Reader & Cabling for SPIFE (1 set)
1361 – REP/SPIFE Contact Sheets (5/pkg)
3358 – SPIFE QuickGel Holder, 1/pkg
SPIFE Touch Technical Specifications
DISPLAYS:
Touch Screen
TIMER RANGE:
1 sec. to 99 min. | 59 sec. in 1 second increments
CHAMBER TEMPERATURE RANGE:
10° to 62°C (50° to 144°F)
STAINER DRYING TEMPERATURE RANGE:
30° to 90°C (86° to 194°F)
INPUT POWER:
Cat. No. 1068: 120 Vac, 50/60 Hz
Cat. No. 1069: 240 Vac, 50/60 Hz
DIMENSIONS:
24″ (61 cm) H x 39″ (99 cm) W x 30″ (76 cm) D
WEIGHT:
78 lb. (35 kg)
OPERATING ENVIRONMENT:
15° to 27°C (59° to 81°F)
Optional Isolation Transformer Specifications
INPUT VOLTAGE:
120V (or 230V)
OUTPUT VOLTAGE:
120V (or 230)
POWER RANGE:
2000 VA
FREQUENCY:
60 Hz (or 50 Hz)
